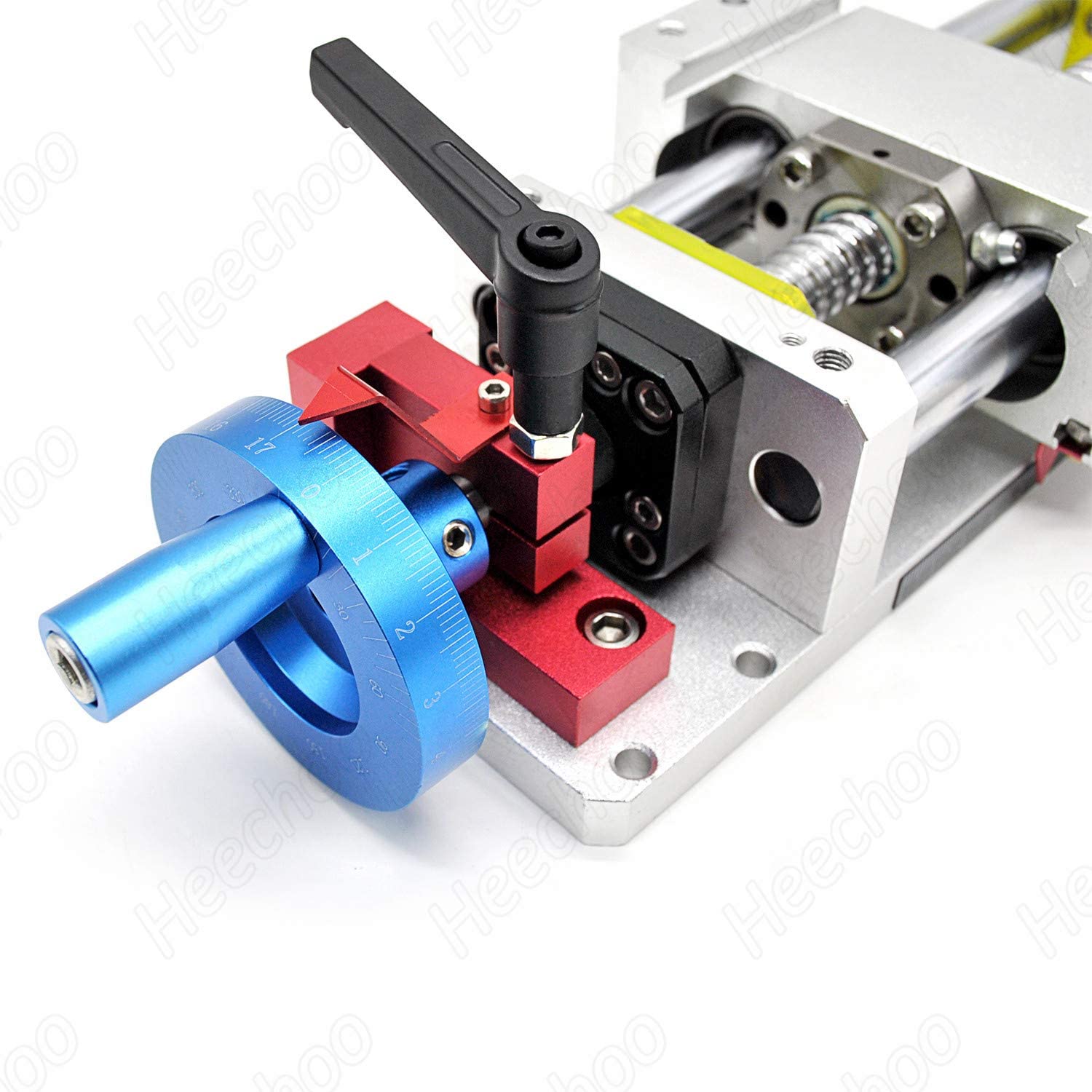

Ball Screw 300MM Linear Stage Actuator Optical Axis Linear Rail Guide Cross Manual Slide Stage with Ruler for DIY CNC Z Axis Router Controller …

Package Included 1 x linear guide slider table 1 x Handwheel with lock and pointer Ballscrew Features Stroke=200(mm)--Horizontal load(max)=60KG --Vertical load(max)=20kg Load capacity decreases with increasing stroke Parameters 1. Ball screw type: 1605 (diameter 16mm, lead 5mm , 1610 screw / 1620 screw can be replaced.) 2. The Handwheel can be replaced by stepper motor, servo motor, AC motor, DC motor；(Other Motor Base Need Extra Purchase，We provide it ) 3.A HD ruler is mounted on the side of the slider to guide the actual position 4.The handwheel scale divides the lead by 360 degrees, and the screw manual lock can be fixed at any desired position. 5. Ball screw accuracy: C7,Repeat positioning accuracy: ± 0.02mm 6. Material: Aviation Aluminum 6061,sandblasted on the surface
