1.51inch Transparent OLED Display Module 128×64 Resolution Light Blue Color Display OLED for Raspberry Pi/Arduino/STM32,Full Viewing Angle,Embedded Independent Driver Chip,SPI/I2C Interfaces

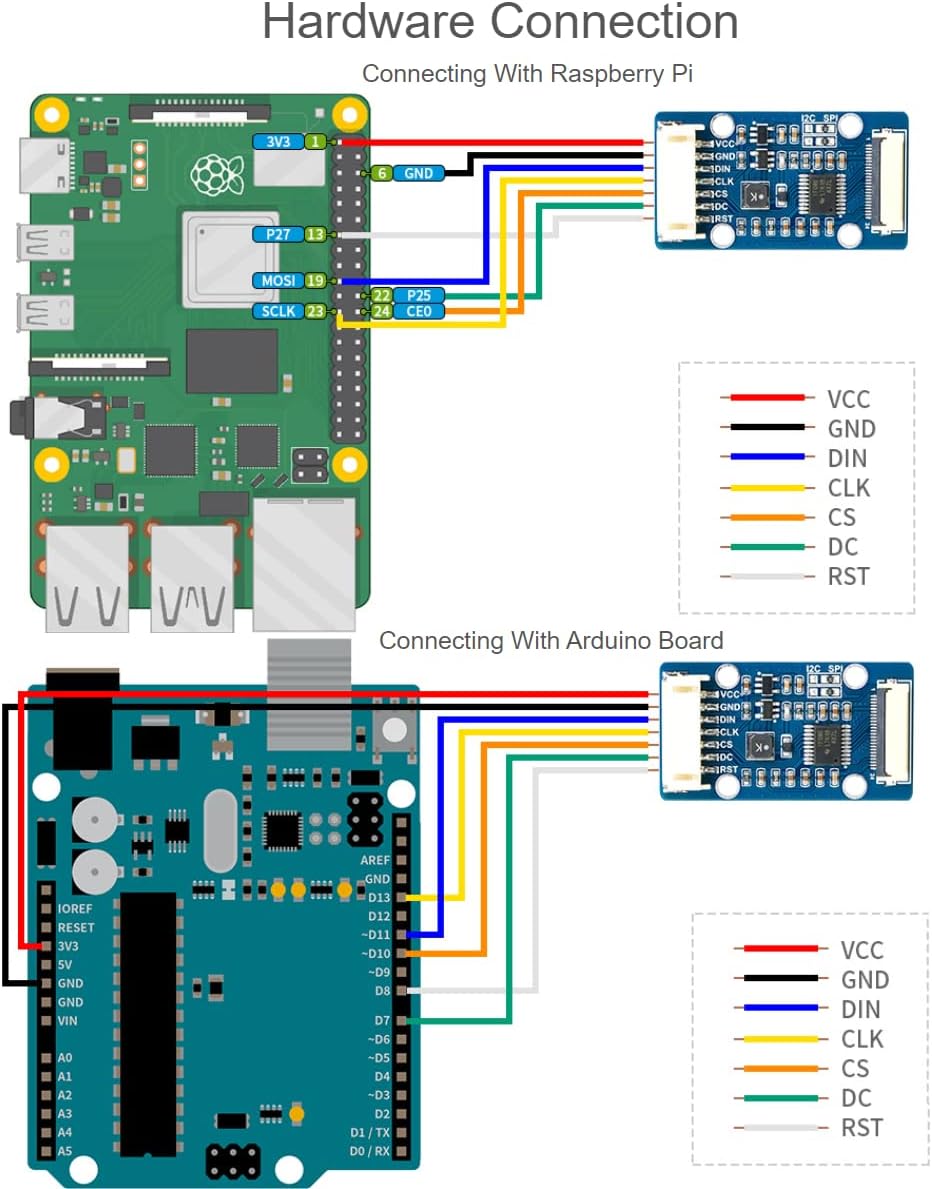

1.51inch Transparent OLED, 128×64 Resolution, SPI/I2C Interfaces, Light Blue Color Display Features 1.1.51inch Transparent OLED.Embedded Independent Driver Chip, Using SPI/I2C Interfaces.Comes with examples for Raspberry Pi, Arduino, STM32, etc. 2.SPI And I2C Control Interface Switching.Supports Controller Boards Like Raspberry Pi/Arduino/STM32 Specification Working Voltage: 5V/3.3V Communication Interface: SPI/I2C Controller: SSD1309 Resolution: 128 × 64 Display Size: 35.05 × 15.32 (mm) Pixel Pitch: 0.254 × 0.254 (mm) Board Size: 41 × 22.5 (mm) Display Color: Light Blue OLED & Controller The integrated built-in controller used by this OLED is SSD 1309, which has 128 × 64 bits SRAM, supports up to 128 × 64 pixel screen, supports SPI/I2C/ 6800 parallel port/8080 parallel port, 256-level brightness settings, this screen is 128 × 64 pixels, so the internal SRAM is not fully used. This module adopts four-wire SPI and IIC interfaces, with good compatibility and high transmission speed. Connection VCC-----Power (3.3V / 5V input) GND------Ground DIN------SPI / I2C data input CLK-----SPI / I2CI clock input CS------Chip selection, low active DC------Data/Command selection (high for data, low for command) RST------Reset, low active Package Content 1.51inch Transparent OLED x1 PH2.0 7PIN cable x1 Screws pack QA 1.How many volts can an OLED module be used in a system? The OLED module is used in a 3.3V system by default, but after more than 24 hours of the burn-in test, it is found that it can also work normally in a 5V system. 2.How many hours is the service life of an OLED module? Generally it is 50,000 hours under normal working conditions. Note Online Dervelopment Resources are provided, please contact us to get if needed.

• 1.51inch Transparent OLED Module, 128×64 Resolution OLED Display, Light Blue Color Display
• OLED Module Embedded Independent Driver Chip,Comes with examples for Raspberry Pi, Arduino, STM32, etc.

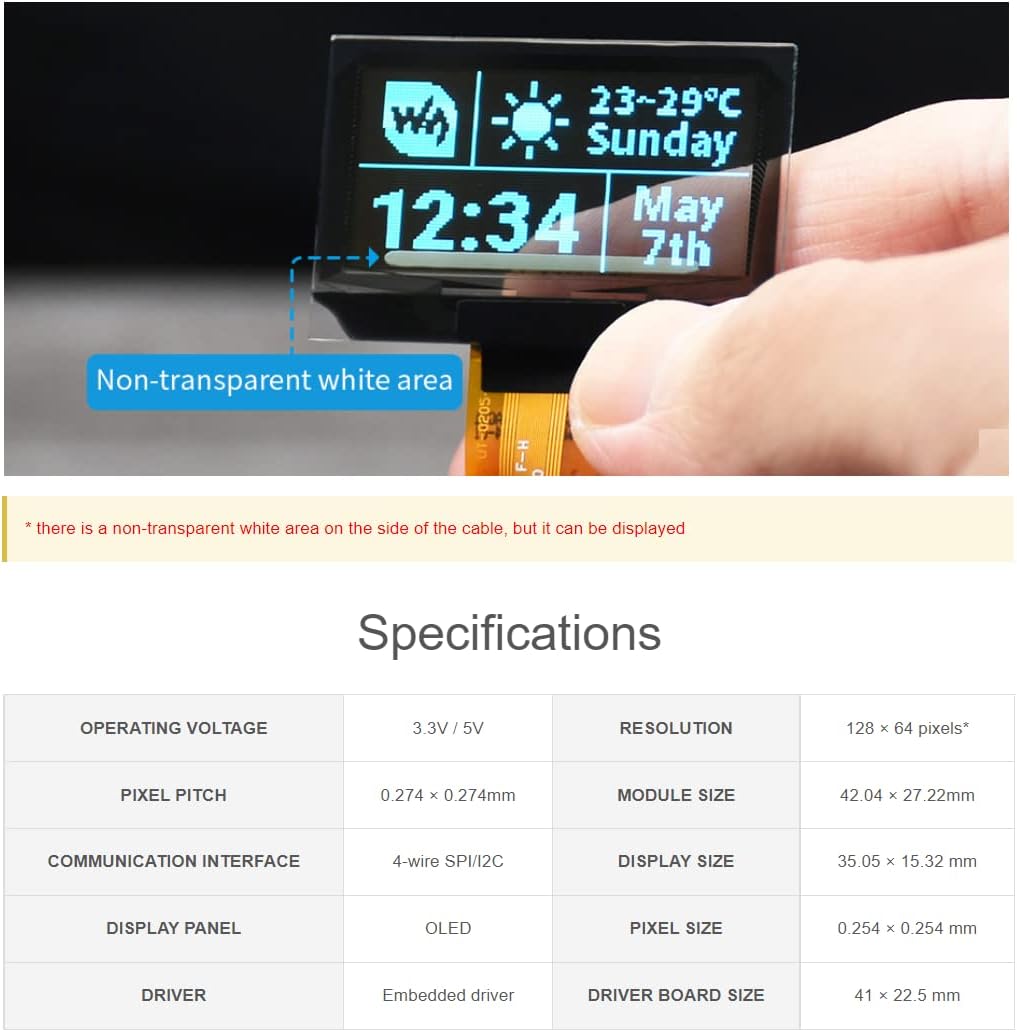

• OLED transparent module, full viewing angle
• Adopts 4-wire SPI and I2C interface, better compatibility, fast data rate
• Provide online development resources (examples for Raspberry Pi/Arduino/STM32), please contact with seller to get .
